IBT Gyro
Rental.
IBT's proven hole surveying system — now available to rent.
A purpose-built production hole gyro delivering fast, accurate, repeatable surveys underground. Survey in-house when it suits.

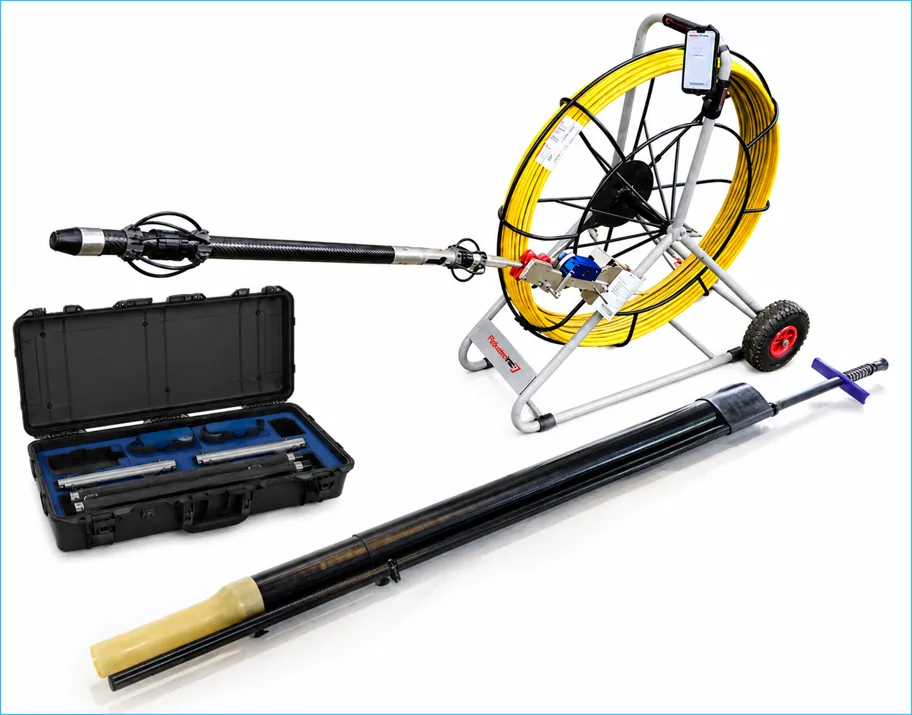

THE RENTAL PACKAGE
Designed by Hole Surveyors.
7 years & 650,000 m of experience.
We’ve spent years surveying holes with different gyros. We took everything we liked, fixed everything we didn’t, and built a simpler hole surveying workflow.
Lightweight
& easy to use.

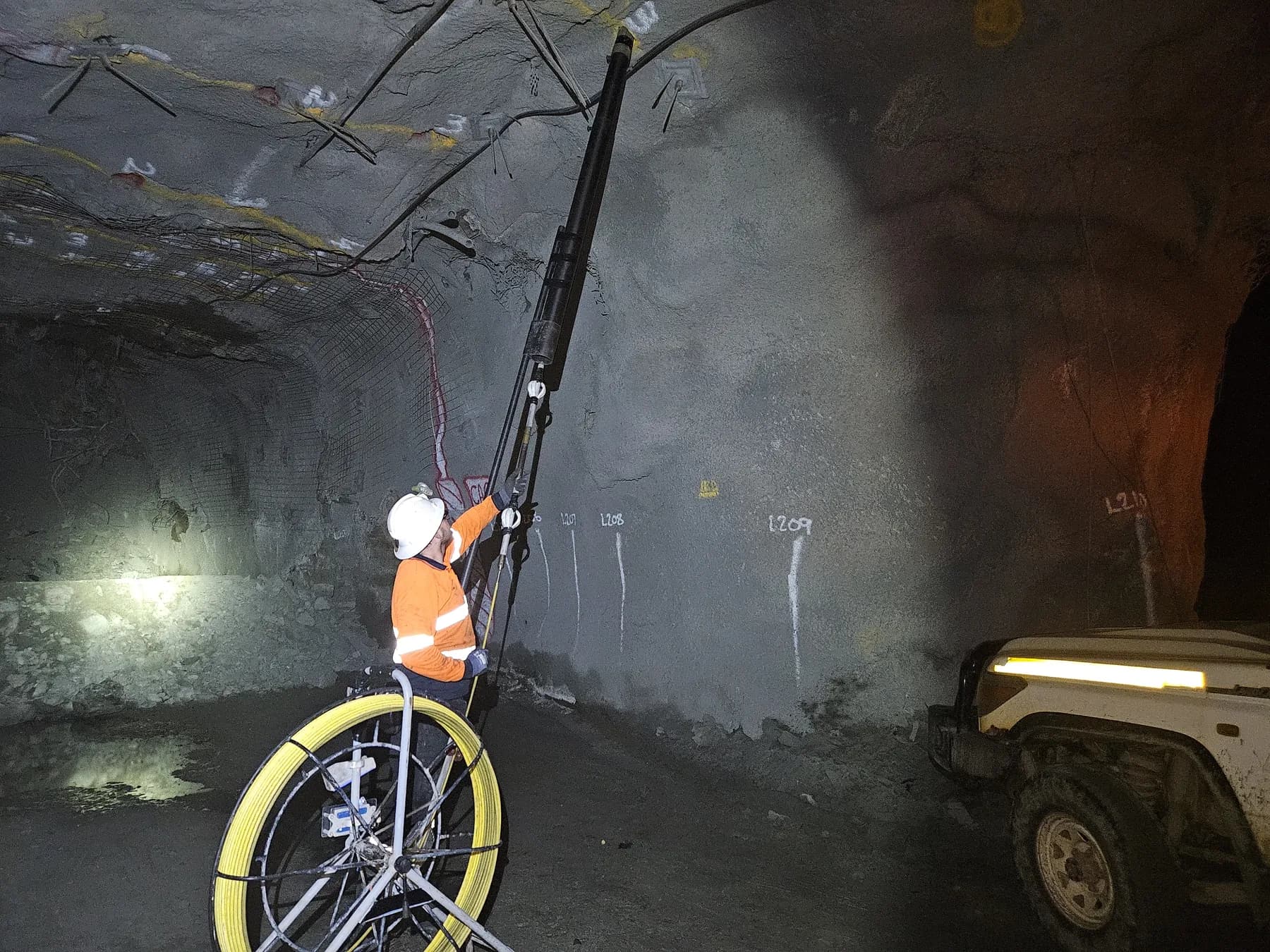

At just 2 kg, the IBT Gyro is lightweight and easy to handle underground. Easy to push up long up-holes, with no settling time.
Continuous survey mode makes 1,000 m per shift routine — the record is 2,342 m surveyed in a single shift.
Survey continuously.
Not hole by hole.

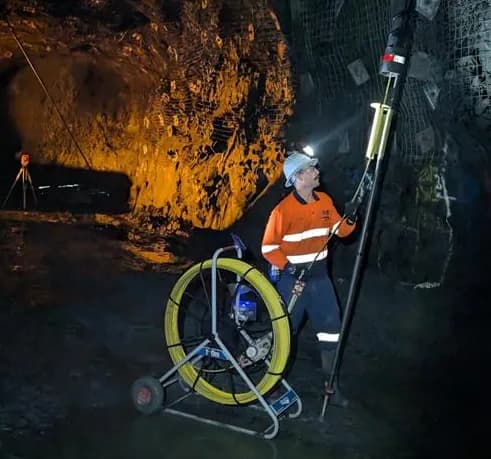

The rodder reel and depth encoder enable continuous survey mode — the probe runs the hole in one smooth pass while depth is tracked automatically.
Easily survey 1,000 m per shift with a site crew, using the same workflow IBT's own operators run every day.

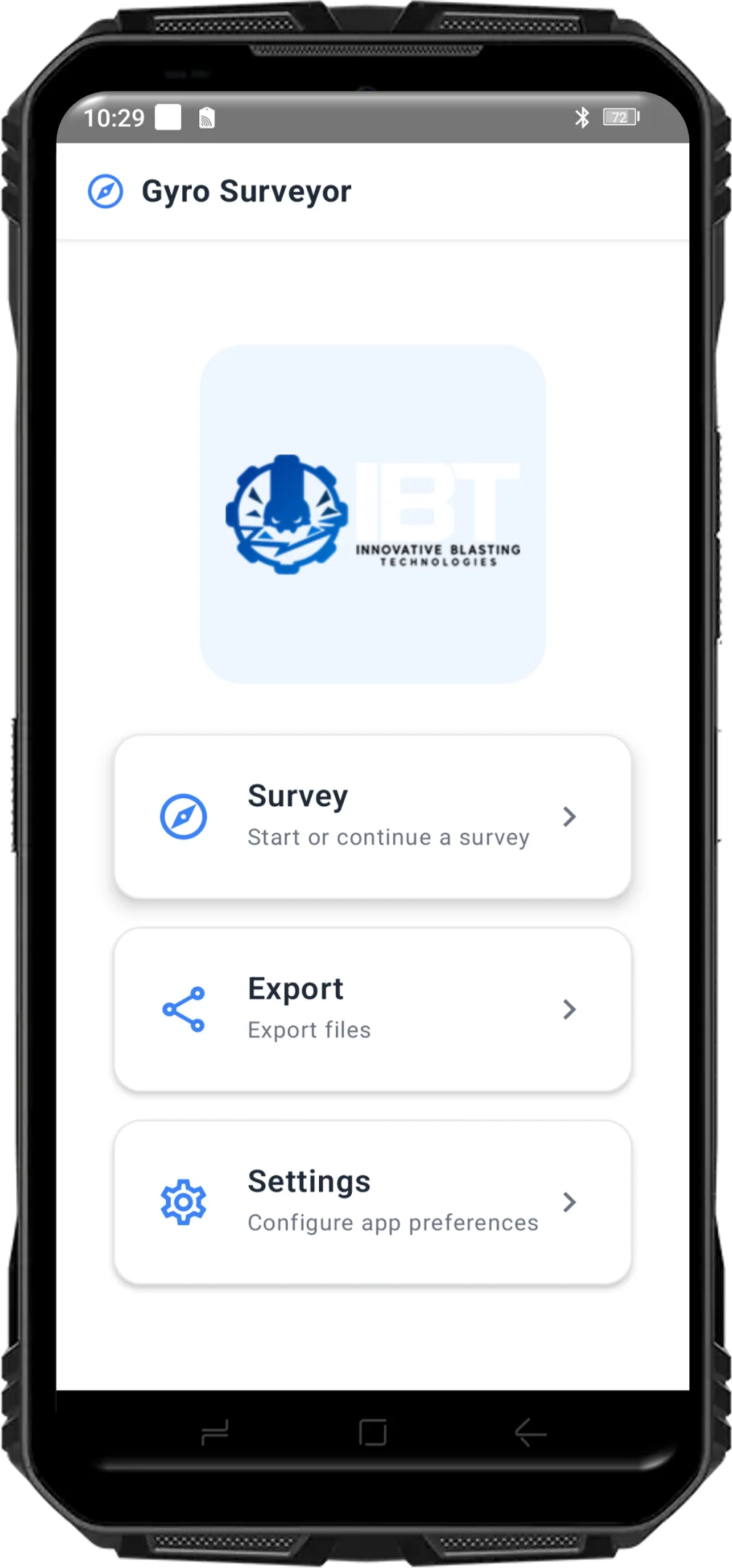

Simple,
user-friendly app.
Minimal clicks and easy to operate underground. Each hole automatically downloads and processes in seconds via Wi-Fi as soon as it’s surveyed.
No Bluetooth. No batch downloads. No losing hours of surveys if something crashes.

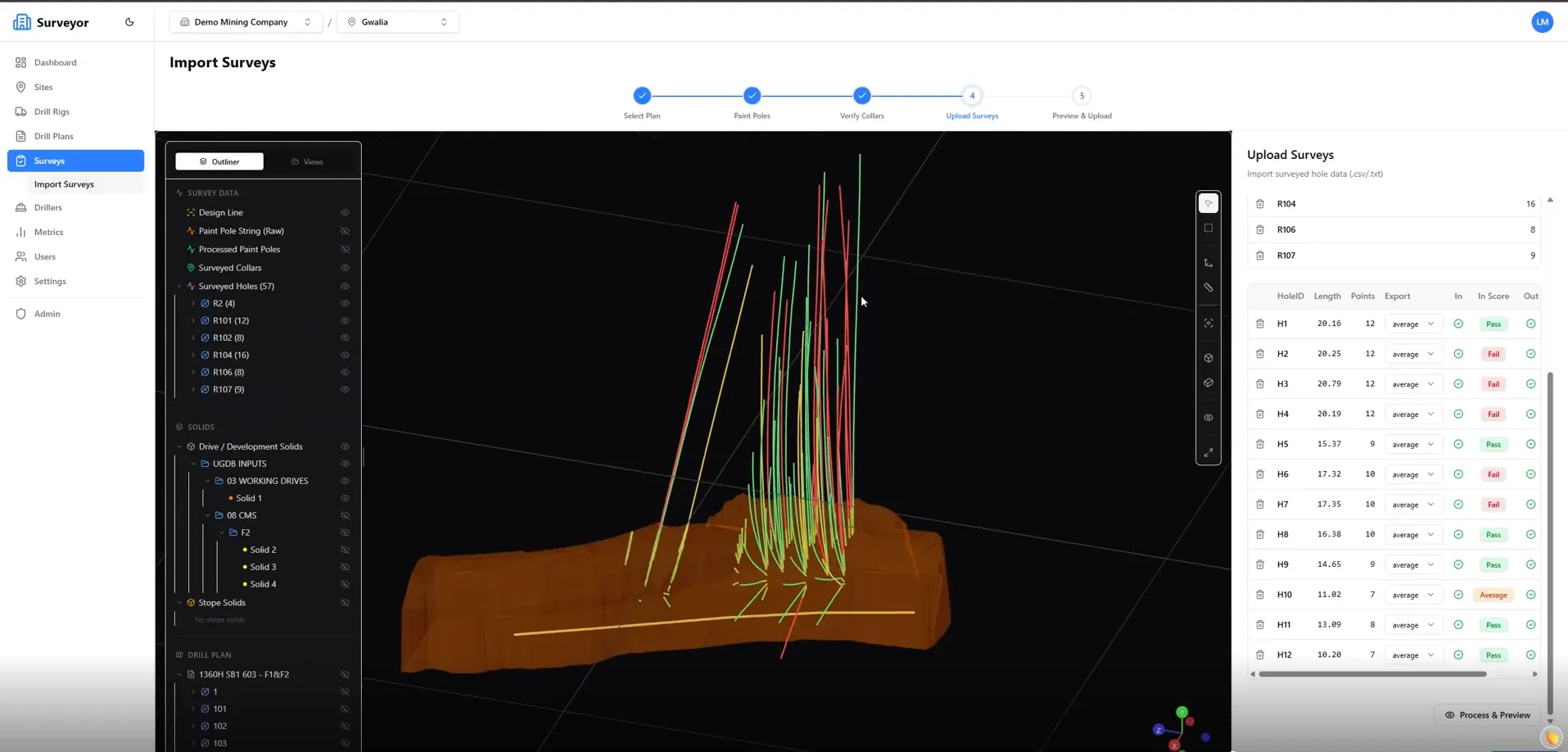

Fast & automated processing
in the Surveyor Portal.
Upload the gyro survey files and the software automatically combines each survey with its matched collar pickup to produce the complete hole survey — no manual azimuth entry or hole-by-hole processing required.
Prefer to hand it off? IBT can remotely process hole survey data and generate standardised Hole Survey Reports, saving engineer and surveyor time.
Ready to survey in-house,
when you need it?
Run hole surveys with your own personnel, when it suits your operation. IBT provides the gyro hardware, training, Surveyor Portal and ongoing support.
